Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications for safety and functionality. A robust and stable foundation is critical not just for the hoist's operational efficiency but also for the safety of both your vehicles and anyone using the equipment. Careful preparation and adherence to established guidelines can greatly enhance the performance and longevity of your installation, providing peace of mind for years to come.

The majority of car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This specific measurement is vital as it facilitates the even distribution of weight from both the vehicle and the hoist, effectively reducing the possibility of cracking or sinking over time. For heavier-duty hoist systems, it is advisable to consider a concrete slab that is thicker, potentially up to 150mm (6 inches), to ensure optimal safety and performance under significant loads.

Step-by-Step Guide to Accurately Assess Concrete Thickness for Your Car Hoist

The thickness of your concrete floor represents a fundamental element in the safe installation and operation of a car hoist. Various factors need to be taken into account when determining the optimal depth for your concrete slab to ensure it can adequately support the loads it will encounter during operation. Gaining an understanding of these factors can help you avoid expensive errors and enhance the safety of your garage environment.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, comprehending the total weight your concrete floor must support is essential. This consideration includes not only the weight of the vehicle but also the hoist itself, which adds a significant load to the floor's structure.

A standard passenger car usually weighs between 1,500 to 2,000 kg, while the hoist can add an additional 500 to 1,000 kg. Furthermore, it is prudent to include an additional safety buffer to accommodate unforeseen circumstances, thereby enhancing the overall safety of the installation.

For most domestic garages, a concrete thickness of 100 mm to 150 mm is generally sufficient. However, if you intend to lift particularly heavy vehicles, it may be necessary to consider a thicker slab to ensure both safety and stability during operation.

Consulting with a structural engineer is a wise choice as they possess the expertise to provide tailored recommendations and assist you in calculating the precise thickness required based on your specific circumstances and operational needs.

Examining Varieties of Car Hoists and Their Concrete Thickness Specifications

It is crucial to understand that different types of car hoists come with distinct requirements regarding concrete thickness. The two-post lifts and four-post lifts are two of the most popular options among homeowners looking to integrate a car hoist into their garages.

Two-post lifts typically concentrate pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or greater, to effectively accommodate the concentrated load.

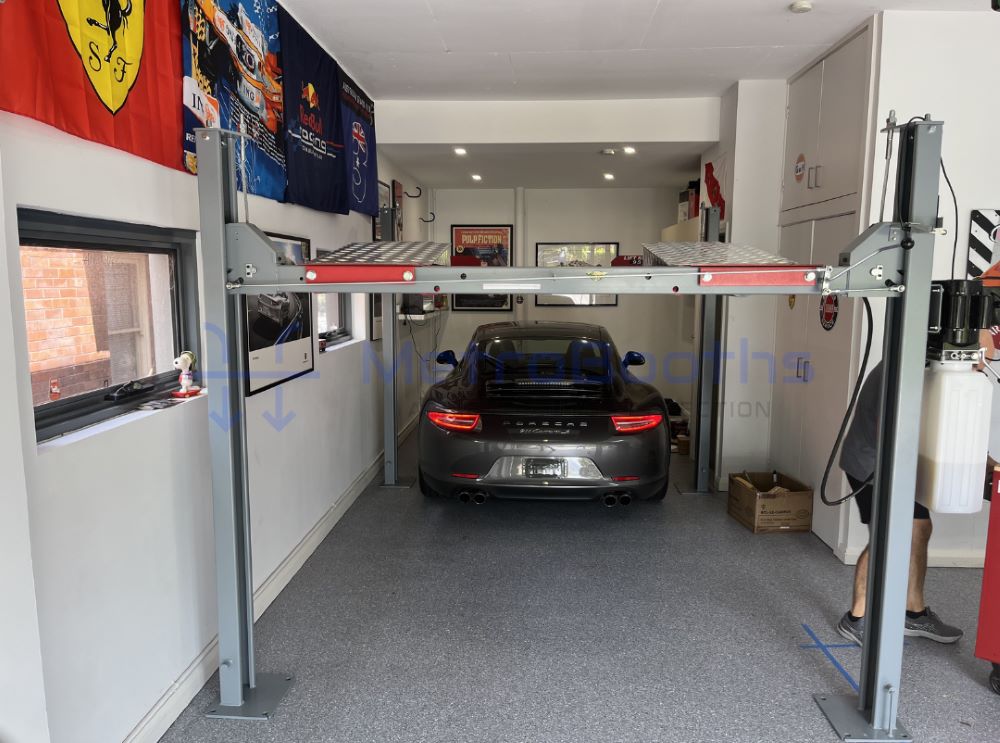

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is significant in your planning and installation process, ensuring that your garage meets the necessary requirements.

Always refer to the manufacturer's specifications for the hoist you are considering, as they usually outline the minimum concrete thickness required for safe and effective operation. Following these guidelines is essential to achieve optimal performance and longevity of your hoist.

Bear in mind that these recommendations serve as general guidelines. Your particular needs may vary depending on your garage's layout and the types of vehicles you plan to lift.

Appreciating the Importance of Concrete Strength and Reinforcement Strategies

The strength of your concrete is equally crucial as its thickness. Stronger concrete can often be utilised at a thinner depth while still providing sufficient support for heavy loads. This consideration is especially relevant in the context of installing a car hoist.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts advocate for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting.

Incorporating reinforcement techniques is vital for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly elevate the overall strength of your concrete floor. Consequently, this could permit the use of a thinner slab while still ensuring it can effectively support heavy loads during operational use.

For most home garages, SL82 mesh is a reliable choice. It offers sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners.

If you are concerned about potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Vital Installation Considerations for Achieving Successful Car Hoist Functionality

When installing a car hoist, meticulous site preparation and ongoing floor maintenance hold paramount importance. By paying careful attention to concrete specifications and ensuring proper floor maintenance, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and enhancing your garage's functionality.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before you proceed with the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick, constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during operation.

For new concrete pours, using steel reinforcing mesh is essential, and allowing the concrete to cure for a minimum of 28 days is crucial. Furthermore, ensure that the area being poured exceeds the footprint of the hoist to provide adequate support and stability.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional is highly advisable, as they can accurately assess its condition.

Crucial Ongoing Maintenance After Installing Your Car Hoist

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could jeopardise the functionality of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural problems. Additionally, consider employing protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan.

Regularly check the tightness of the anchor bolts, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any homeowner.

Common Questions Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It's wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is typically capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What considerations should be taken into account when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, you should consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a prudent choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency.
