Flat Metal Roof Leaking Issues Explained

How to Identify and Solve Common Flat Roof Problems for Homes in the Central Coast

While flat roofs may not be the predominant choice in the Australian roofing market, their adoption is growing among both residential and commercial properties. These roofs are commonly found on patios, carports, walkways, and other structures requiring low-pitch roofing. In cases of minimal incline, flat roofs are often referred to as “skillion roofs.”

Flat roofs offer many advantages but come with specific challenges that homeowners must be aware of. Recognising the common issues associated with flat roofing systems and implementing preventative strategies is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing problems.

What Key Factors Are Driving the Increasing Popularity of Flat Roofs Among Homeowners?

The trend towards flat roofs in both residential and commercial construction is rising for several compelling reasons:

• They are quicker and simpler to install, leading to faster project completion timelines.
• They provide easier maintenance access, streamlining routine inspections and repairs.
• They serve as excellent platforms for solar panel installations, enhancing energy efficiency.

The most significant concern associated with flat roofs lies in effective water drainage. Water is the primary adversary of your roof. Therefore, when planning a new roof installation or upgrading an existing one, it is crucial to consider various factors, particularly rainfall levels, which can vary considerably across Australia’s diverse regions.

What Are the Primary Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs, which allow rainwater to flow off rapidly into gutters, flat roofs have a limited slope. This design can lead to water accumulation that persists for extended periods. If water is not effectively directed off the roof, it may result in:

• Surface staining and degradation of roofing materials.
• Structural weakening of roofing components over time.
• Accumulation of mould and mildew, which can pose health risks.
• Leaks that can infiltrate the interior of the building.

The key to addressing these challenges lies in effective roof plumbing and thoughtful design that account for the unique challenges presented by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Before installation, a professional roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevalent weather patterns.
• Overall roof area and precise dimensions.
• Gutter configurations and effective drainage outlets.
• Downpipe dimensions and specifications.
• Overflow prevention measures to mitigate excess water.
• Considerations regarding roof pitch to improve drainage.

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with less than this slope can jeopardise waterproofing efforts and may even invalidate product warranties, leading to costly repairs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are unsuitable for very low-pitch applications. For flat roofs, specific roofing profiles engineered for efficient water shedding are highly recommended to ensure long-lasting performance.

Discovering the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Systems

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is applicable for both roofing and wall applications. Its 28mm rib height and uniquely designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent option for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is vital for ensuring the enduring performance and reliability of your roofing system.

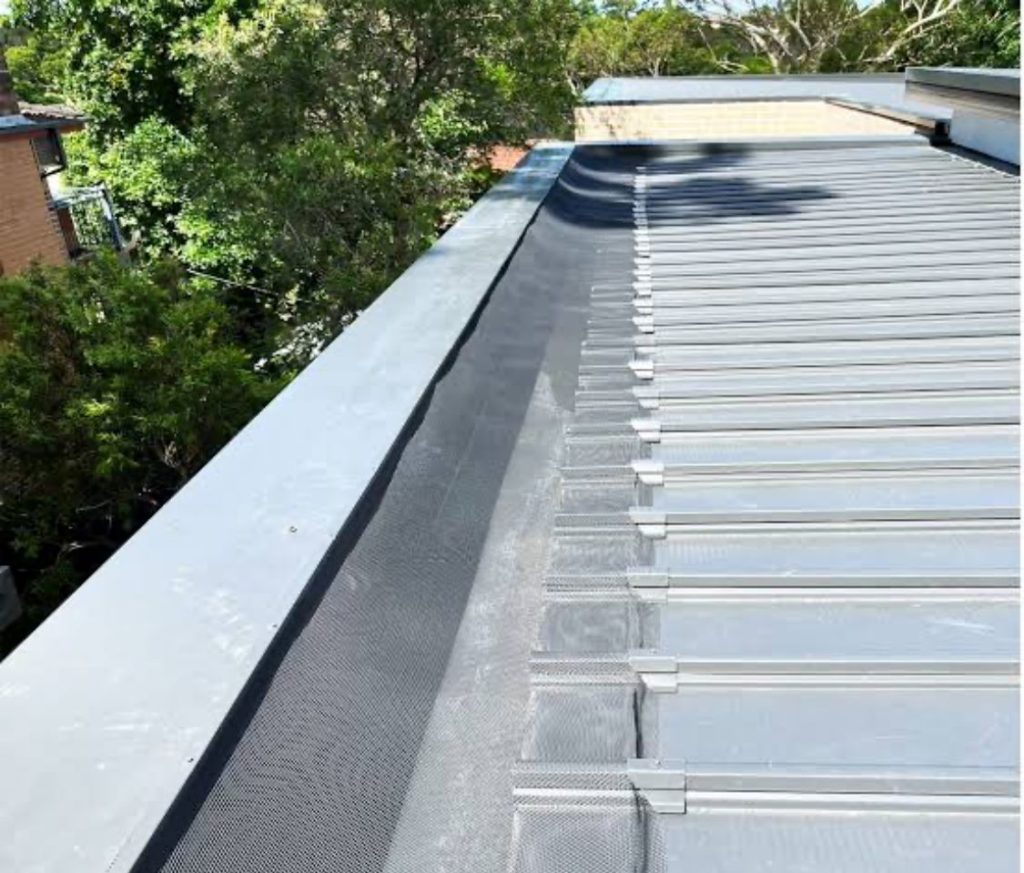

How to Efficiently Manage Box Gutters and Drainage on Flat Roofs

On flat roofs, box gutters are frequently utilised to connect roof panels to drainage outlets. As box gutters are situated below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up challenges.

Common challenges associated with box gutters include:

• Accumulation of debris from nearby trees and foliage.
• Improper fall or slope that impedes water flow.
• Overflowing back into the roof structure, resulting in leaks.
• Blocked downpipes that hinder effective drainage.

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately accommodate the water flow demands of flat roofs. It is often necessary to install guttering specifically designed to handle larger water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall.
• Effectively clear debris with high flow capabilities.
• Provide easier cleaning and maintenance options for homeowners.

Our top recommendation for gutters is self-cleaning designs, ideal for flat metal roofs while also providing an aesthetically pleasing appearance!

We recommend a half-round gutter due to its superior water-carrying capacity, allowing for faster drainage. This design effectively sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be adequately sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) capable of handling substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is crucial, as water can accumulate around these joints if they are not adequately sealed.

To effectively prevent water ingress:

• Flashings must be carefully shaped to conform to the roof profiles.
• Waterproof sealants should be applied at all joints to ensure tight seals.
• Extra attention is necessary at corners and seams where water may collect.

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy rainfall. Our team takes additional precautions during installation and utilises high-quality waterproof sealants to prevent water from pooling in these vulnerable areas.

Why Is Consistent Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to maintain clear drainage.
• Checking downpipes for any signs of potential blockages.
• Inspecting roof surfaces for small cracks or areas where water may pond.
• Re-sealing flashings as necessary to preserve waterproof integrity.

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Uncover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that enhances property value.
• Optimised space for patios, decks, or utility services, maximising utility.
• Convenient access for maintenance or solar panel installation, simplifying upkeep.

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, enhancing the overall functionality and appearance of the building.

How to Ensure You Get the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in the coastal environment. Whether you are undertaking a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and prevent more significant complications in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Problems Than Pitched Roofs?

Indeed, flat roofs can encounter more drainage challenges if they are not designed appropriately. Without adequate slope, water may pond or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What Is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure effective drainage.

Is It Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff, but they must be precisely sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently utilised to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in minimising maintenance requirements.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as necessary will significantly extend the roof's lifespan and performance.
