French Drain Solutions for Effective Runoff Management in Shellharbour

Resolving Water Ingress Challenges in Shellharbour

A homeowner in Shellharbour encountered a serious and worsening issue with water ingress. Rainwater from two neighbouring properties, which are situated at a higher elevation, began to flow into the garden and seep beneath the foundation of the house. This unwanted water intrusion caused damage to the flooring, promoted rising damp, and resulted in mould growth within the property, jeopardising the integrity of recent renovations.

How Do You Determine the Cause of Water Ingress?

The issue originated from both surface runoff and subsurface water flowing downhill from the rear and side gardens of neighbouring properties. Without an effective drainage system in place to intercept this inflow, the water was forced to flow beneath the house.

Developing an Effective Drainage Solution

CS Plumbing engineered and installed a gravity-fed French drain system specifically designed to capture and redirect water before it could reach the foundation of the home.

The project comprised several critical components:

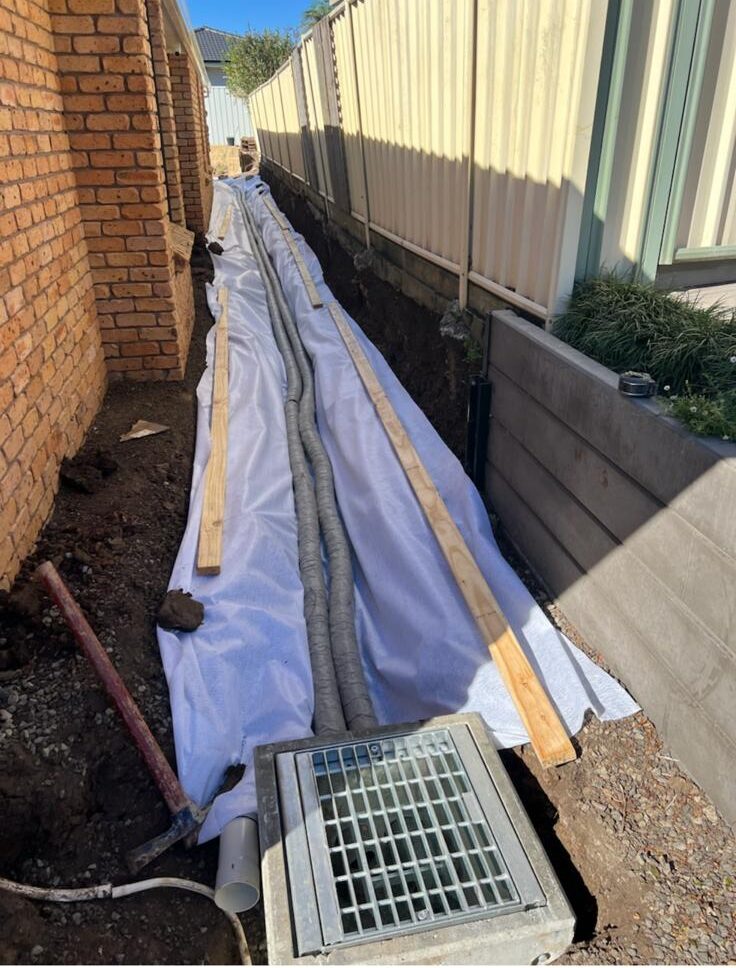

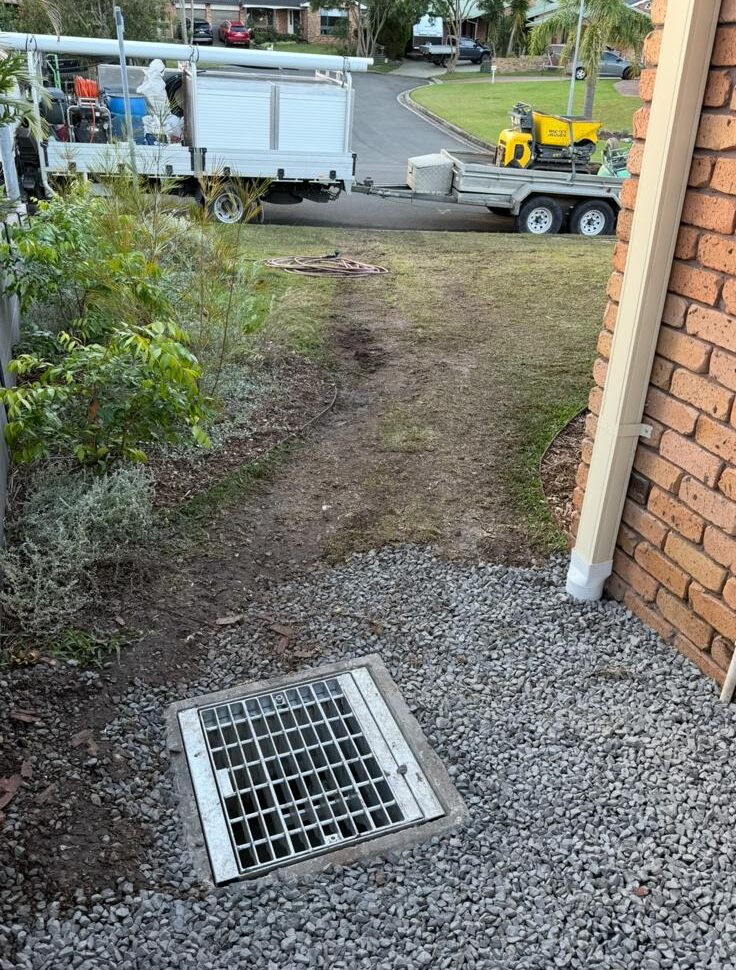

A French drain system carefully crafted to collect surface and subsurface water from adjoining properties, directing it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the curb, featuring strategically placed drilled holes in the curb to ensure effective discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, linked to new 100mm PVC piping leading to the curb.
A retaining wall system constructed along the boundary, using concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to create a sturdy barrier against the adjacent yard.

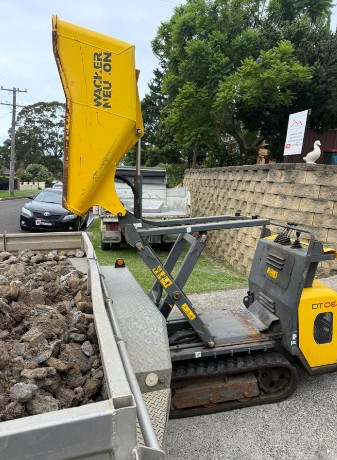

Efficient soil removal on-site, facilitated by a dumper for streamlined site management.

What Measures Can You Implement for Effective Water Management?

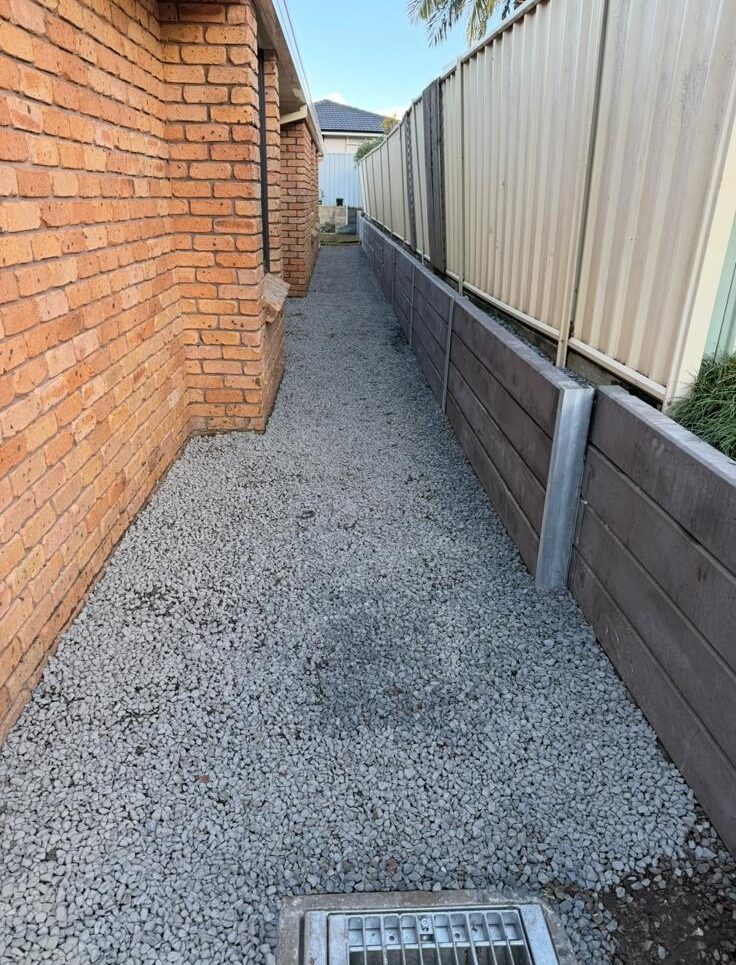

The newly installed drainage system now efficiently captures both surface and subsurface water at the property boundary, ensuring it is diverted away from the home. This solution provides the homeowner with a durable, low-maintenance option that protects their foundation, flooring, and the investment made in renovations.
