Shed Wiring Tips for Rural Electricians and Contractors

If you own a shed located on acreage and find managing extension cords from your home to be a cumbersome task, it is essential to ensure that your shed is wired properly. Whether your needs involve a simple storage shed that requires just a light and a power point, or a fully equipped workshop that makes use of heavy-duty tools such as welders and compressors, adhering to the correct procedures is crucial. In NSW, the only legal way to achieve this is by hiring a licensed electrician.

This comprehensive guide outlines the key steps necessary to supply electricity to your shed. It details what your electrician will require for the installation process and provides an estimate of the costs involved, particularly for those in the Mid North Coast region.

Maximise Your Shed's Power Supply: Understanding Cable Runs for Optimal Performance

The foremost consideration for any shed wiring project is ensuring the effective transmission of power from your main switchboard to the shed itself. On larger properties, this distance can extend to 30, 50, or even over 100 metres. The longer the distance, the larger the diameter of the cable required to adequately manage voltage drop and maintain efficiency.

When planning your cable runs, you essentially have two primary options available:

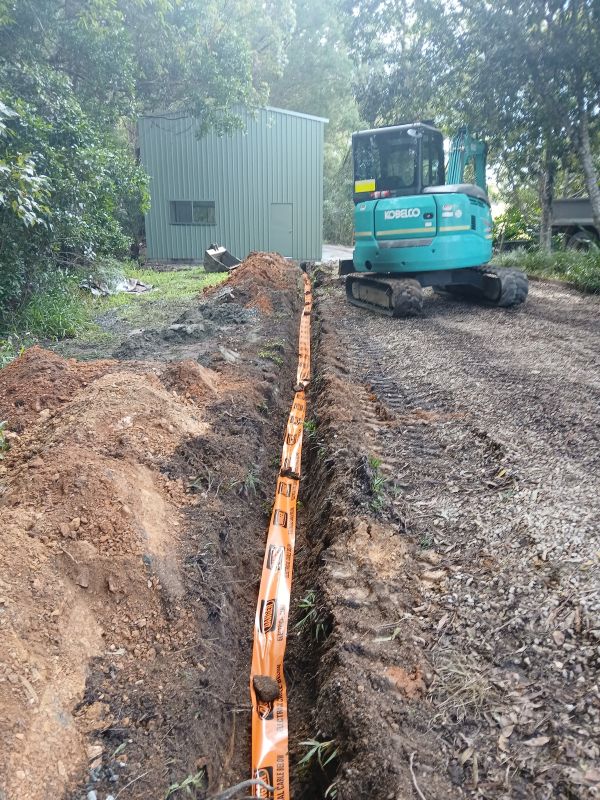

• Underground cable run — This is the most common and visually appealing option. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles frequently pass. This method protects the cable from harsh weather, wildlife interference, and falling branches, making it the preferred choice for most properties with extensive acreage.
• Overhead cable run — While this option is less frequent, it may be necessary if solid rock is present or if the terrain complicates trenching. Overhead runs must adhere to clearance height regulations and require support poles, which can significantly increase the overall costs.

For most properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is highly recommended. Your electrician in Bellingen can assess your site and suggest the optimal route for the installation.

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

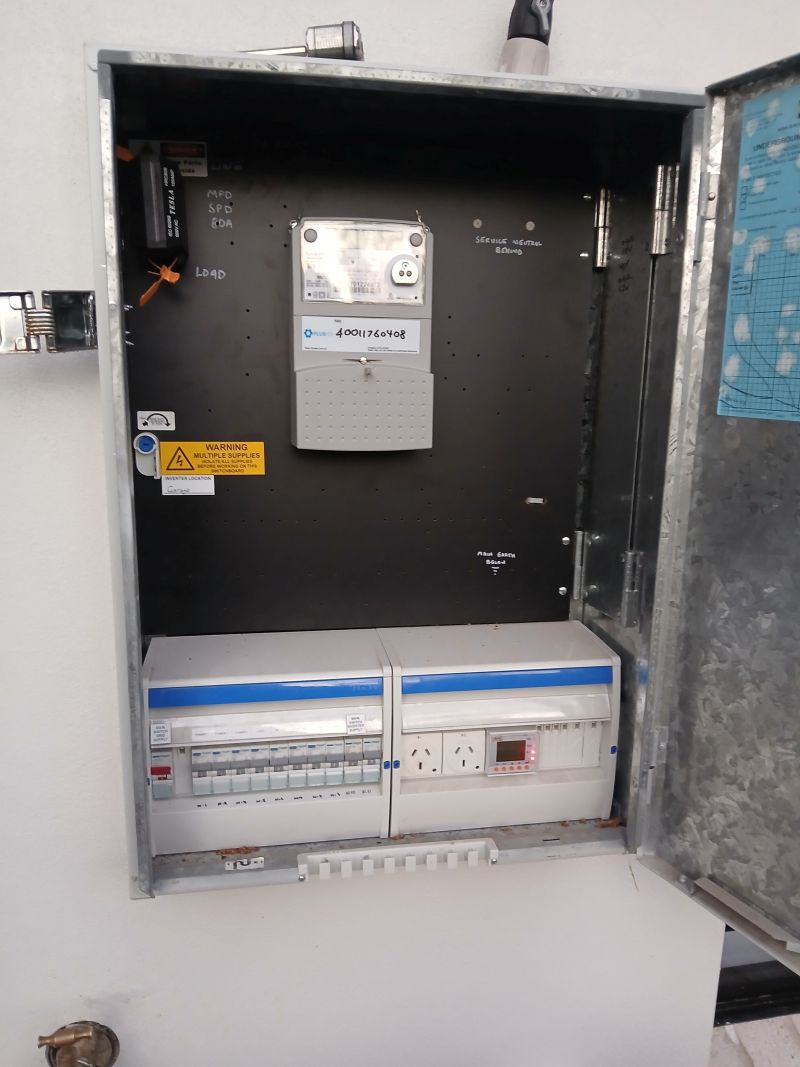

Merely running a single cable to the shed and plugging in appliances is insufficient for a functional power supply. Any shed equipped with electricity must include a dedicated sub-board, often referred to as a distribution board. This device serves as a mini switchboard within the shed, effectively managing all circuits and ensuring safe operations.

Your sub-board typically consists of the following critical components:

• Main switch — This component enables you to isolate all power to the shed independently from the main house, thereby enhancing safety and control.
• RCDs (Residual Current Devices) — These devices are mandated by NSW electrical regulations and provide immediate power cut-off within milliseconds in the event of a fault. This feature is essential for safety in a shed environment where moisture, dust, and damaged leads can be prevalent.
• Circuit breakers — These provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring a secure and reliable setup.

If your home’s switchboard is outdated, your electrician may also recommend an upgrade to effectively accommodate the additional load directed to the shed.

What Key Features Should Be Installed Inside Your Shed for Maximum Efficiency?

The specific installations that your electrician performs inside the shed will depend entirely on its intended purpose. Here’s an overview of common setups for various applications that can enhance functionality and usability.

Designing an Efficient Basic Storage Shed

If your shed primarily serves as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following setup:

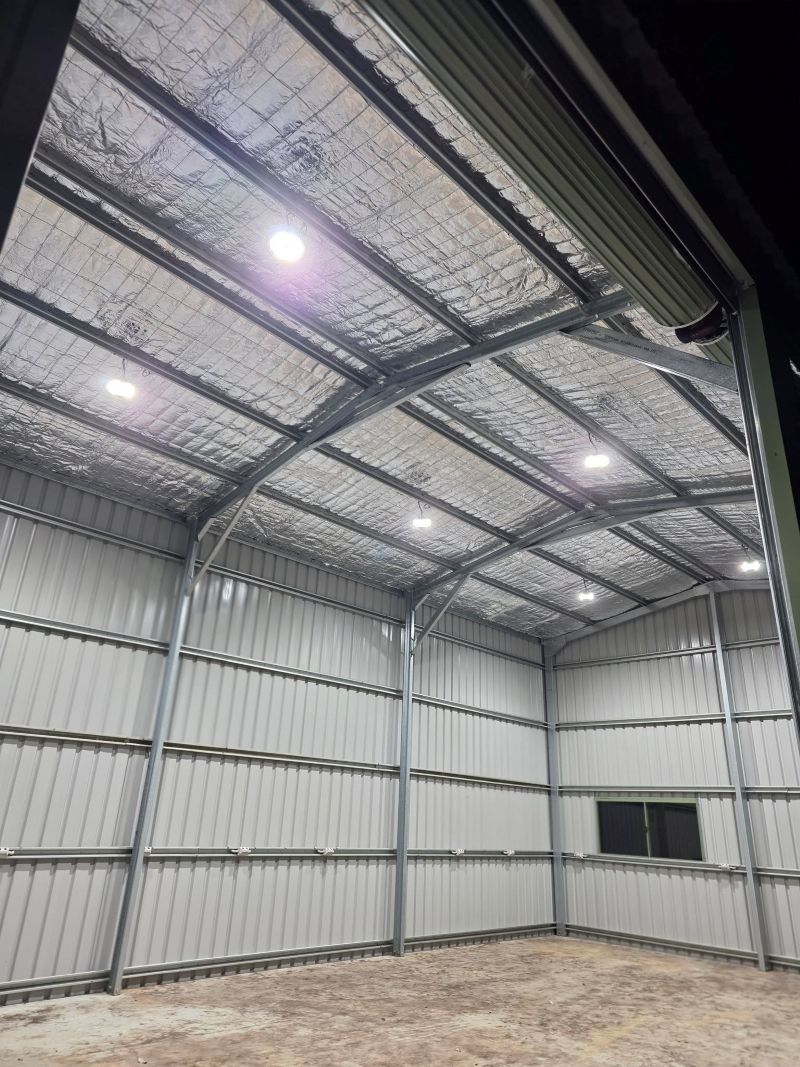

• LED batten lights — One or two ceiling-mounted LED batten lights will adequately illuminate the entire area. Your electrician can recommend the best lighting arrangement based on the shed's dimensions and layout, ensuring optimal visibility.
• Two to four general power points — These will be sufficient for plugging in items such as a charger, radio, or drop saw when needed. Expect standard power points and switches to operate on a single circuit, enhancing convenience.
• External light — A weatherproof LED light positioned above the door will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Creating a Fully Equipped Powered Workshop Shed

If you frequently utilise power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to accommodate your needs:

• Multiple circuits — Having dedicated circuits for lighting, general power, and specific tool outlets will prevent flickering lights whenever a tool is activated, thus ensuring a smoother workflow and improved productivity.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively and safely.

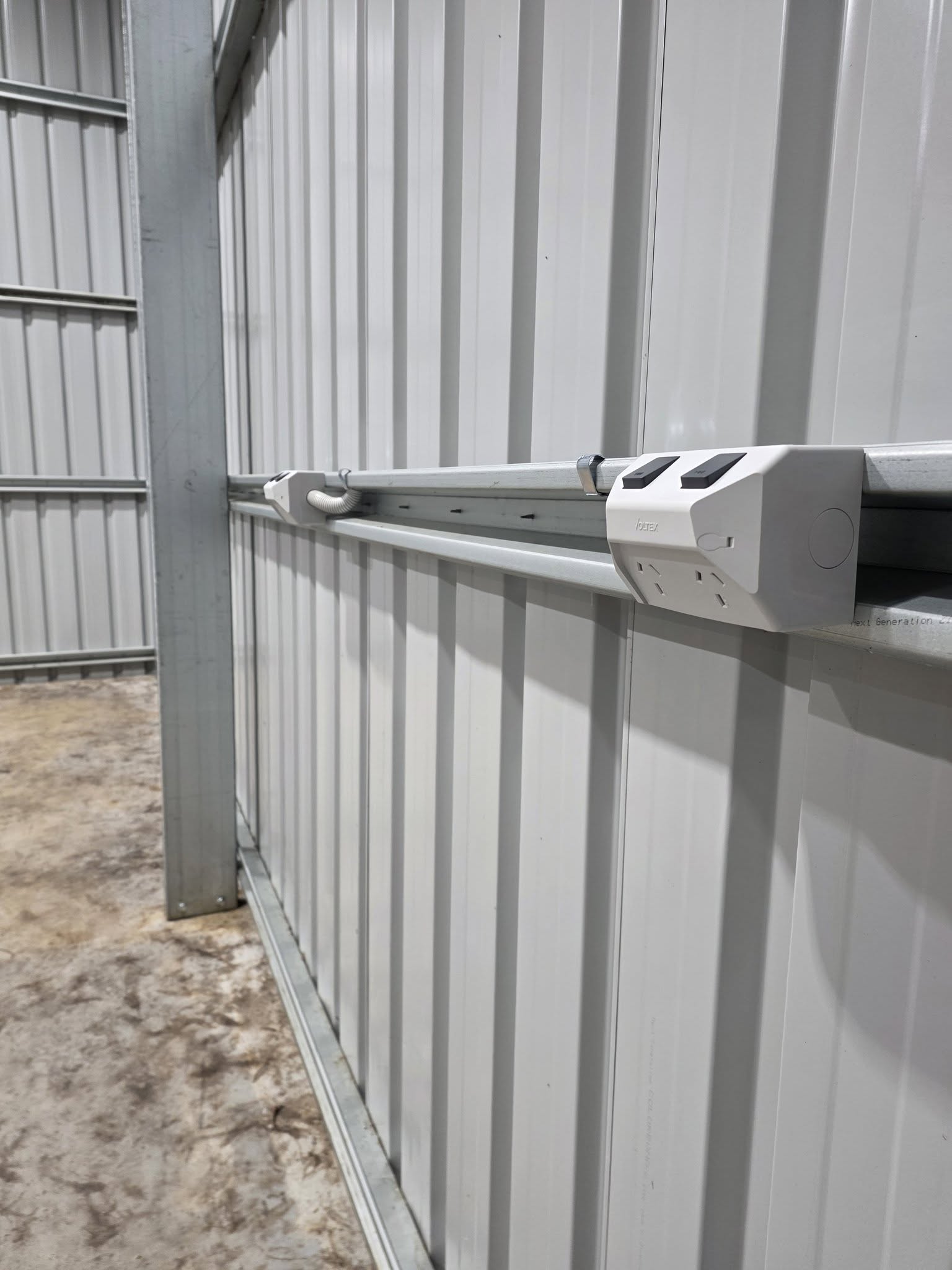

• Strategically placed additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency and accessibility.
• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks, contributing to a safer working environment.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment for further insights.

Establishing a Comprehensive Workshop with Three-Phase Power Supply

If you plan to operate heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power may not suffice. In such circumstances, considering three-phase power is advisable for consistent operation.

Three-phase power offers more reliable and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast due to logistical considerations.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure both safety and compliance with local regulations.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances, which can impact budget considerations.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency during operation.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will suffice. We also provide complete installations for three-phase switchboards should you opt for that route.

Why Is Surge Protection Essential for Your Shed's Safety and Longevity?

Properties located on acreage in the Mid North Coast often experience severe lightning storms. A direct or nearby strike can cause extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and any equipment that is connected to power sources.

Installing a high-quality surge protection device within the sub-board acts as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment, safeguarding your investments. For sheds housing expensive tools or a workshop setup, surge protection is a non-negotiable necessity to protect your assets.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to seamlessly switch to generator power during outages, enhancing your energy resilience.

What Are the Key Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations you must be aware of:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical tasks—including cabling, connections, sub-board installation, and other related work—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will handle this aspect of the installation meticulously to ensure compliance and safety.
• If the shed is newly constructed, development approval may be required depending on your local council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project may require one.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure both safety and legality.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast region:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Frequently Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety requirements.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations and best practices.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to determine the appropriate course of action.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and inefficiencies.

Ensure Safe and Efficient Wiring for Your Shed Today

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your specific needs.
