Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was required.

Choose Precision Electrical & Air for Your Essential Switchboard Upgrade

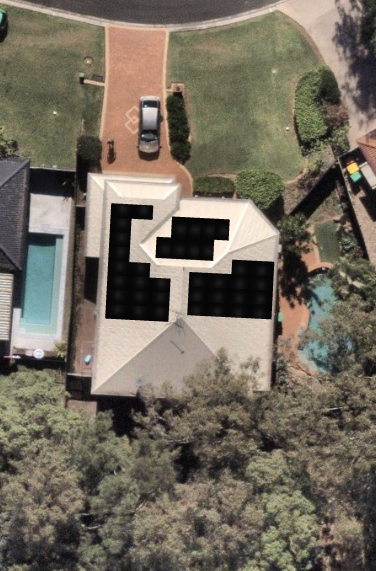

The homeowner in Chelmer initiated an extensive renovation project that involved the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, alongside a 30kWh modular battery storage solution, and comprehensive blackout protection for their entire home. Additionally, they incorporated a new ducted air conditioning system into their overall plan. Before connecting these advanced systems, it was vital to thoroughly evaluate and enhance the existing switchboard to ensure compliance with the latest regulatory standards and effectively manage the increased electrical demands that these installations would introduce, ensuring safety and performance.

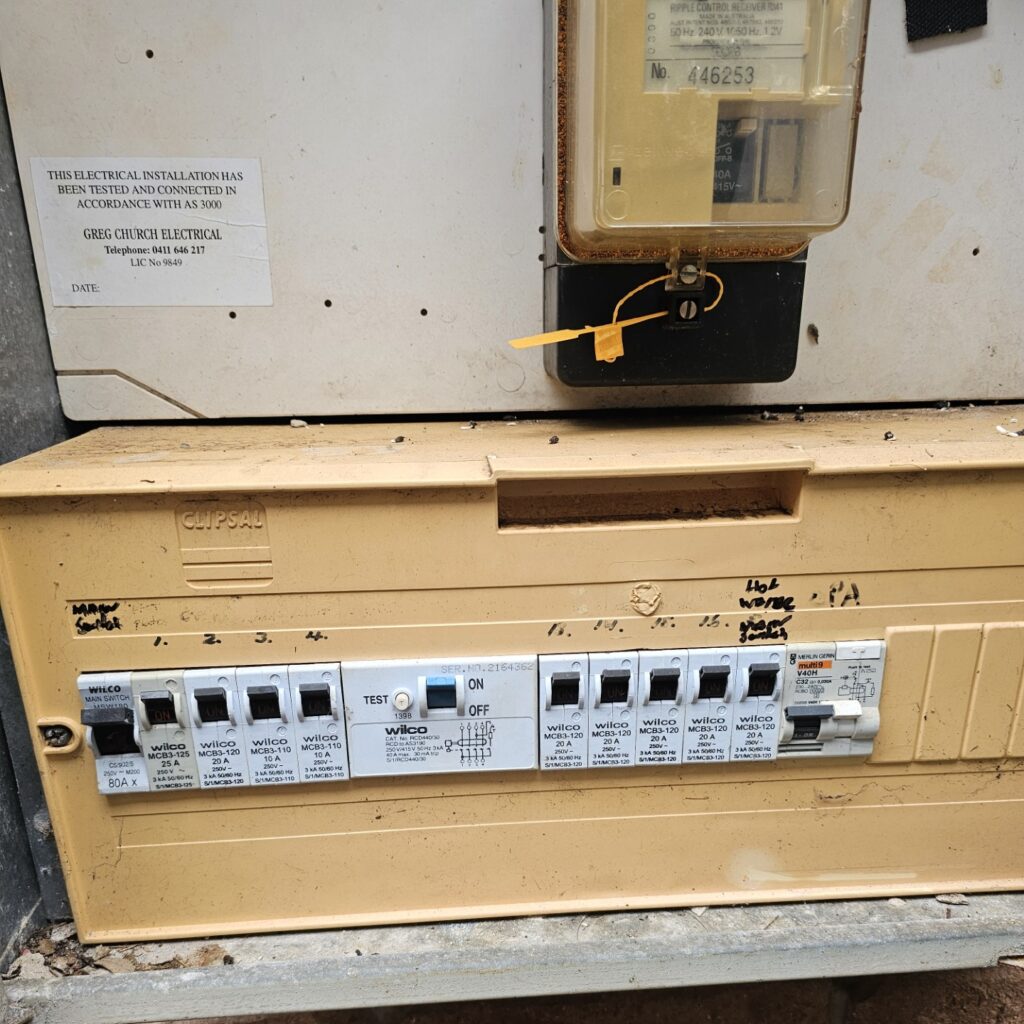

The original switchboard was outdated and equipped with obsolete circuit breakers, accompanied by a single Residual Current Device (RCD) that provided inadequate protection across the entire property. This configuration was incapable of supporting solar energy integration and battery storage effectively. Further compounding the issue was the poor circuit labeling, which rendered it non-compliant with modern standards governing contemporary energy generation systems. This significant lack of compliance posed a substantial risk to the efficient operation of the newly upgraded systems, necessitating immediate action.

Is a Three-Phase Upgrade Truly Necessary for Your Solar and Battery System?

When assessing the specifications of a 17.86kW solar power system in conjunction with a 30kWh battery, it is a common misconception that a three-phase upgrade is obligatory. This misunderstanding can lead to substantial financial implications for the homeowner, potentially incurring costs that range from £3,500 to £6,000, in addition to a lengthy wait for approval from Energex for any necessary network modifications.

Comprehensive Initial Technical Assessment Conducted to Determine Upgrade Necessity

Two key factors played a critical role in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically positioned near the street junction. This advantageous situation allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically designed to reduce demand on the grid rather than increasing it, there was no technical justification from the network's perspective for the need for a three-phase upgrade. Additionally, the ducted air conditioning system was also found to comply with the essential parameters for effective single-phase operation, supporting the decision to retain the existing configuration.

Consequently, the decision was made to maintain the single-phase configuration. The existing switchboard was upgraded to ensure it could safely and competently handle all new electrical loads without compromising safety or compliance with regulatory standards. This proactive approach not only enhanced the system's capacity but also safeguarded the homeowner's investment.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

The existing switchboard underwent a comprehensive dismantling and reconfiguration process. Every circuit breaker was meticulously replaced with new, appropriately rated units sourced from Eaton, ensuring that each breaker was clearly labelled for easy identification. The circuits were carefully separated; power, lighting, hot plates, ovens, split-system air conditioning, and ducted air conditioning each received dedicated circuits. This approach significantly enhanced safety and ensured compliance with current regulations, thereby mitigating potential hazards.

A timer was strategically integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This thoughtful addition significantly reduces dependence on the grid by optimising the utilisation of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency, thereby maximising energy savings.

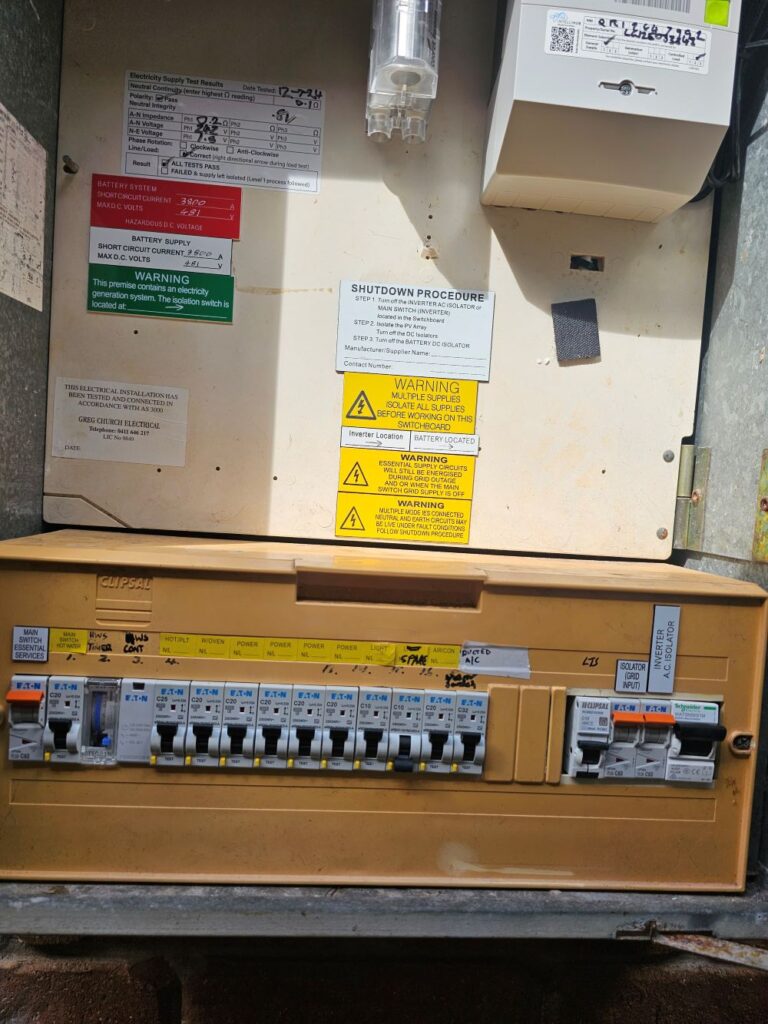

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A. It also included multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and meticulously documented for the switchboard, ensuring a robust and reliable system.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property, thereby providing peace of mind for the homeowner.

Homeowner Enjoys Significant Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances, resulting in substantial financial savings.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property, ensuring you make an informed decision.

We assure you that no upselling occurs; you will receive an accurate evaluation specifically tailored to your home and its unique needs.

Your Frequently Asked Questions Addressed Regarding Solar and Three-Phase Power

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters and ensuring reliable operation.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property, ensuring a safe and compliant installation.
